1.5 Peta-Byte written PM9A3 doesn't work with PS5

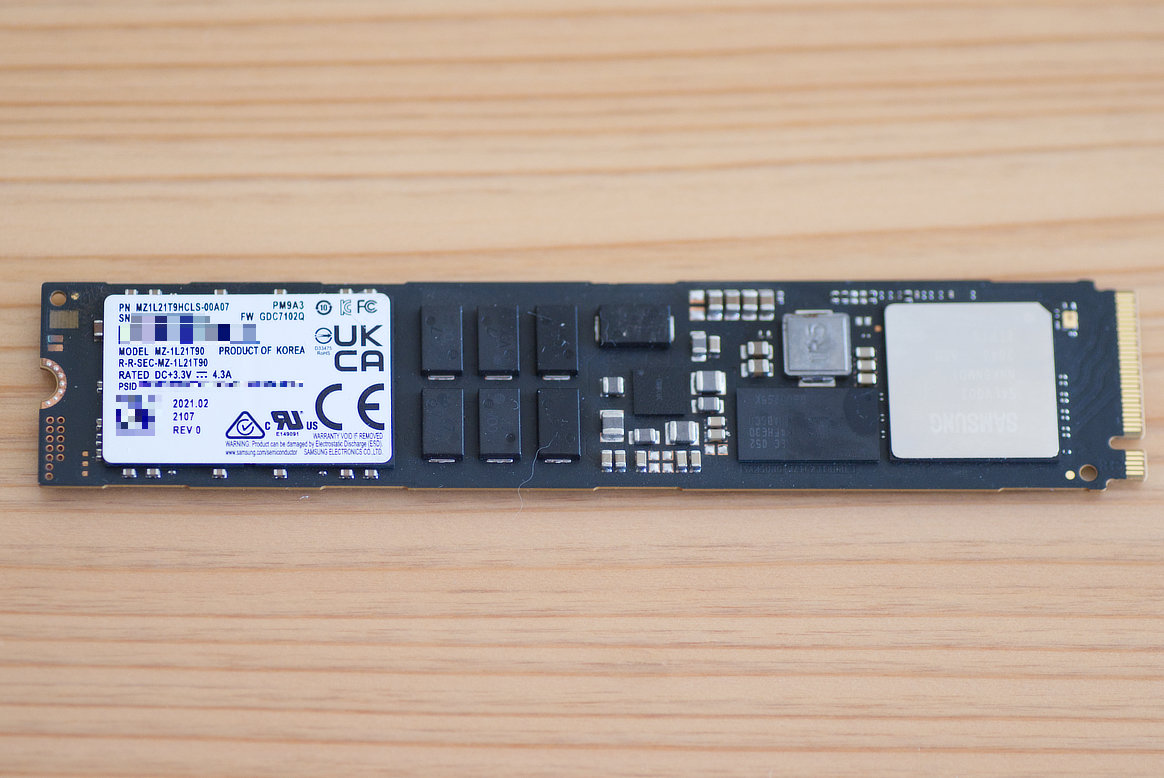

I found that a Samsung's PCIe 4.0-gen SSD PM9A3 1.92TB (MZ1L21T9HCLS-00A07) was sold for just a little over 20000 JPY in a certain place. The SSD is read and written 1520465GB = 1.5PB, so it's a slightly fishy stuff, but the price is quite low as PCIe Gen4 2TB NVMe SSD. Its endurance is promoted as 1 DWPD which is equivalent to 3540 TBW for enterprise. This means its lifetime still remains more than half according to the spec though 1.5PB written. I thought the SSD would just fit to PS5 and got it.

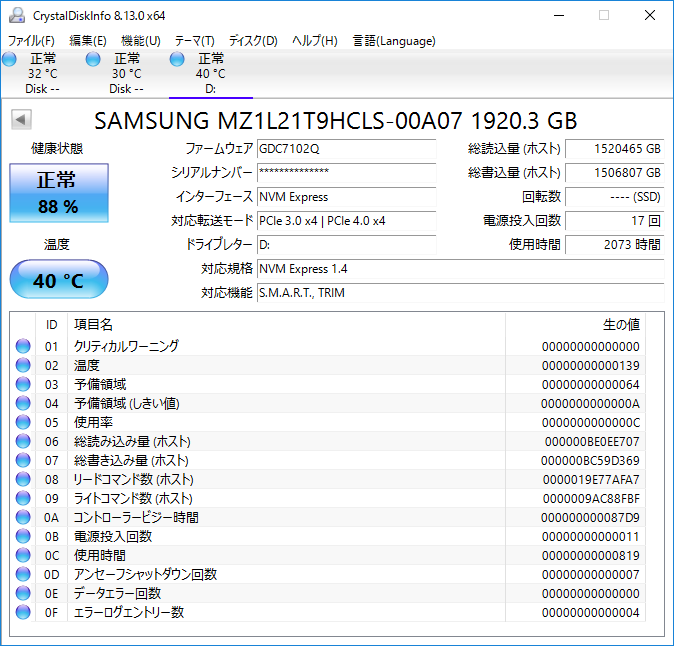

S.M.A.R.T. information and benchmarks show below as always.

“Start Stop Count” and “Power On Hours” are too low for read/written bytes. I guess it may be leaked stuff for an endurance test. The remaining lifetime 88% per 1.5PB written means that the theoretical TBW gets 12.5PB.

Benchmark results are on PCIe 3.0 environment. I haven't gotten any PCIe 4.0 machines yet.

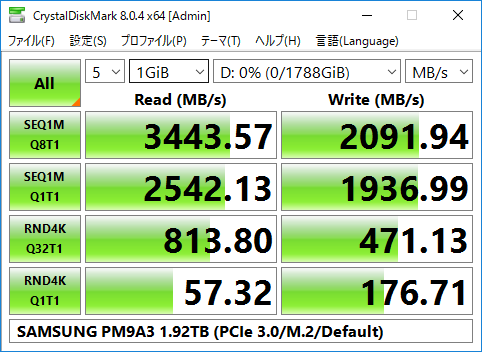

CrystalDiskMark
Profile Result
Default
------------------------------------------------------------------------------
CrystalDiskMark 8.0.4 x64 (C) 2007-2021 hiyohiyo
                                  Crystal Dew World: https://crystalmark.info/
------------------------------------------------------------------------------
* MB/s = 1,000,000 bytes/s [SATA/600 = 600,000,000 bytes/s]
* KB = 1000 bytes, KiB = 1024 bytes

[Read]
  SEQ    1MiB (Q=  8, T= 1):  3443.566 MB/s [   3284.0 IOPS] <  2433.85 us>
  SEQ    1MiB (Q=  1, T= 1):  2542.130 MB/s [   2424.4 IOPS] <   412.00 us>
  RND    4KiB (Q= 32, T= 1):   813.802 MB/s [ 198682.1 IOPS] <   155.75 us>
  RND    4KiB (Q=  1, T= 1):    57.317 MB/s [  13993.4 IOPS] <    71.17 us>

[Write]
  SEQ    1MiB (Q=  8, T= 1):  2091.937 MB/s [   1995.0 IOPS] <  3900.20 us>
  SEQ    1MiB (Q=  1, T= 1):  1936.994 MB/s [   1847.3 IOPS] <   539.93 us>
  RND    4KiB (Q= 32, T= 1):   471.135 MB/s [ 115023.2 IOPS] <   268.97 us>
  RND    4KiB (Q=  1, T= 1):   176.707 MB/s [  43141.4 IOPS] <    21.27 us>

Profile: Default
   Test: 1 GiB (x5) [D: 0% (0/1788GiB)]
   Mode: [Admin]
   Time: Measure 5 sec / Interval 5 sec
   Date: 2021/12/13 21:20:40
     OS: Windows Server 2016 Server Standard (full installation) [10.0 Build 14393] (x64)
Comment: SAMSUNG PM9A3 1.92TB (PCIe 3.0/M.2/Default)

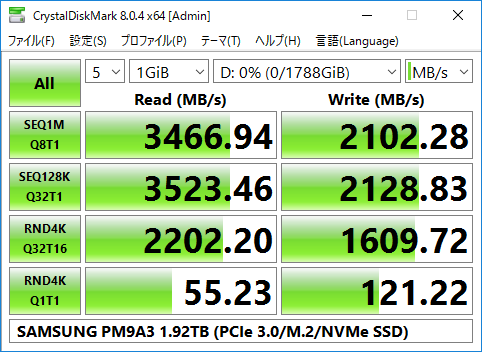

NVMe SSD
-----------------------------------------------------------------------------
CrystalDiskMark 8.0.4 x64 (C) 2007-2021 hiyohiyo
                                  Crystal Dew World: https://crystalmark.info/
------------------------------------------------------------------------------
* MB/s = 1,000,000 bytes/s [SATA/600 = 600,000,000 bytes/s]
* KB = 1000 bytes, KiB = 1024 bytes

[Read]
  SEQ    1MiB (Q=  8, T= 1):  3466.937 MB/s [   3306.3 IOPS] <  2417.09 us>
  SEQ  128KiB (Q= 32, T= 1):  3523.463 MB/s [  26881.9 IOPS] <  1189.22 us>
  RND    4KiB (Q= 32, T=16):  2202.203 MB/s [ 537647.2 IOPS] <   656.41 us>
  RND    4KiB (Q=  1, T= 1):    55.227 MB/s [  13483.2 IOPS] <    73.86 us>

[Write]
  SEQ    1MiB (Q=  8, T= 1):  2102.285 MB/s [   2004.9 IOPS] <  3944.41 us>
  SEQ  128KiB (Q= 32, T= 1):  2128.834 MB/s [  16241.7 IOPS] <  1963.64 us>
  RND    4KiB (Q= 32, T=16):  1609.719 MB/s [ 392997.8 IOPS] <  1070.17 us>
  RND    4KiB (Q=  1, T= 1):   121.218 MB/s [  29594.2 IOPS] <    33.34 us>

Profile: Default
   Test: 1 GiB (x5) [D: 0% (0/1788GiB)]
   Mode: [Admin]
   Time: Measure 5 sec / Interval 5 sec
   Date: 2021/12/13 21:03:31
     OS: Windows Server 2016 Server Standard (full installation) [10.0 Build 14393] (x64)
Comment: SAMSUNG PM9A3 1.92TB (PCIe 3.0/M.2/NVMe SSD)

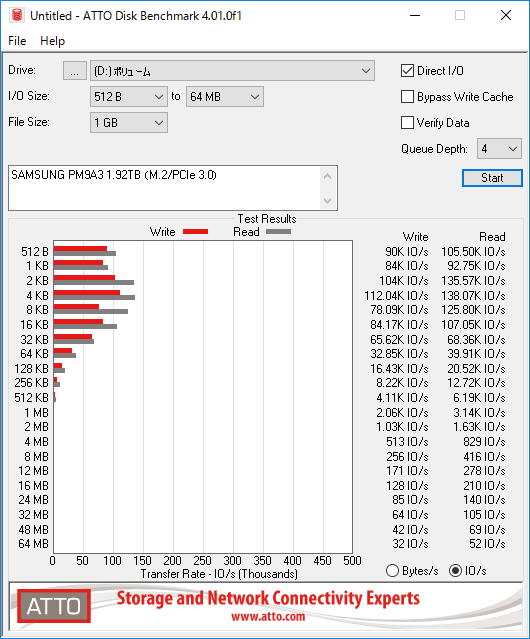

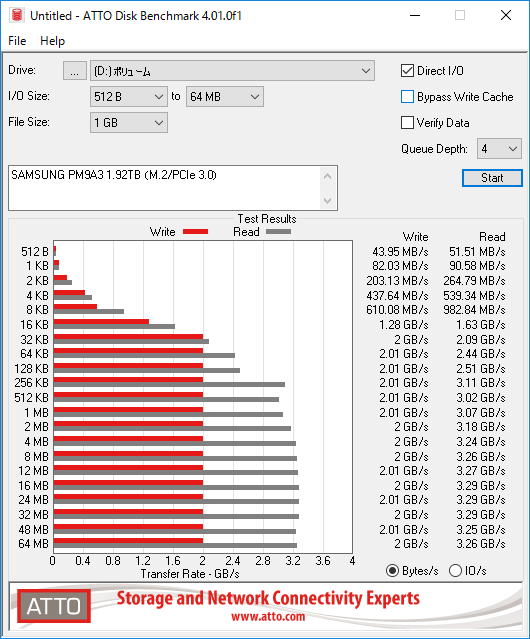

ATTO Disk Benchmark
MB/s IOPS

In benchmarking, the SSD heats up to 80 degree Celsius reading from S.M.A.R.T. It should bear cooling in mind.

And now, as the point of interest to work with PS5, it doesn't…

When power on my PS5 attaching PM9A3, screen is completely black and BD drive spins up and down repeatedly. It seems that it repeats to be reset and reboot while booting.

I tried to attach another PCIe 3.0 SSD, then my PS5 showed the “Can't use the M.2 SSD inserted in the expansion slot.” screen up, so it is good. It tells me that PM9A3 can't work with PS5 for some reason somehow as of now. It's too bad.

Hmmm, what should I treats the iffy SSD…

VirtIO RNG may cause high CPU utilization by rand_harvestq in FreeBSD 13 VM

I found my home server suddenly got increased power consumption. Its difference was up to 30W, so it's not obviously error.

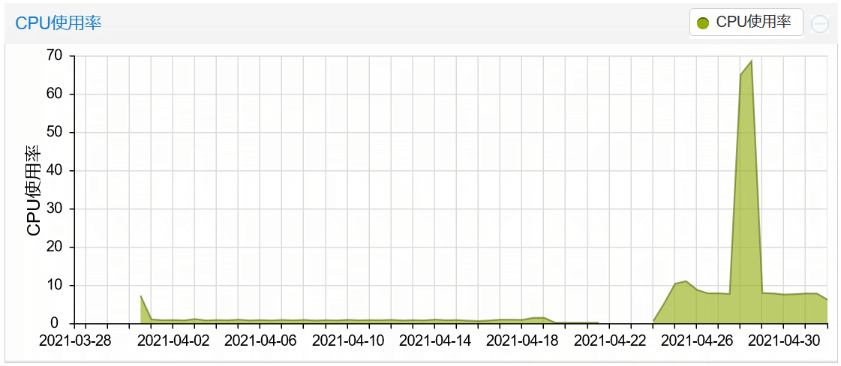

It was caused by powering up FreeBSD VM on ProxmoxVE, but I had no reasonable reasons. When I casually saw the PVE's CPU utilization graph, I found it increased considerably after upgrading to 13.0-RELEASE.

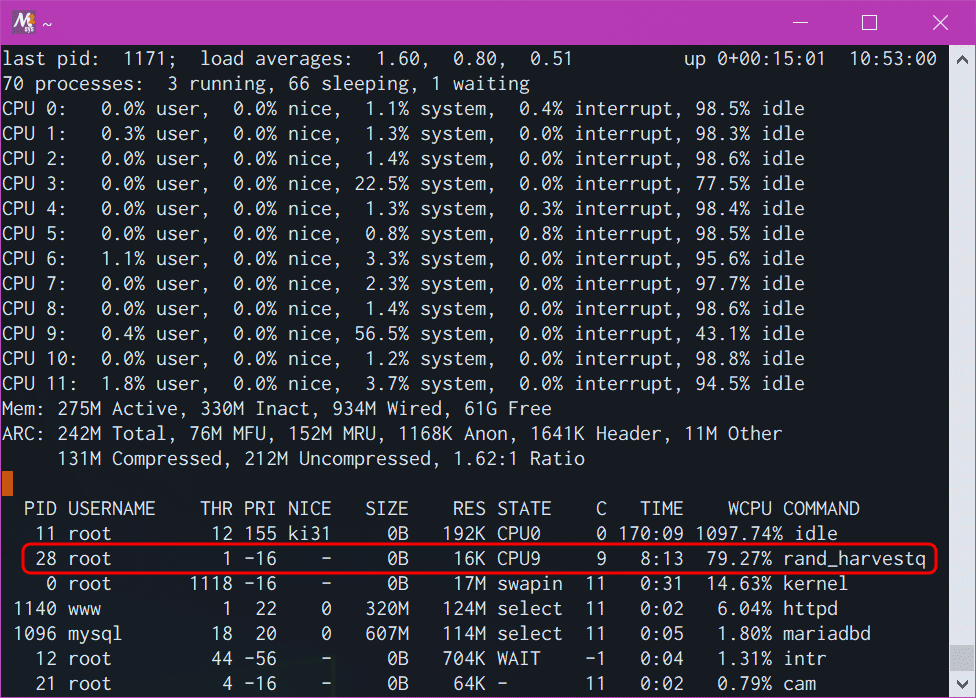

Although I checked FreeBSD top result, there were nothing significant highly loaded processes, but it showed “System” used 4-5% CPU on closer look. It meant some sort of system processes ate a CPU. And I checked details with top -SP, then a rand_harvestq process constantly ate 40-80% of one of CPU cores.

The process appears for harvesting entropies of random number from its name. Show my article about the entropy harvesting.

There are no weird points at system variables relevant to the harvesting. If I was to say it, using two random sources which are 'VirtIO Entropy Adapter'(VirtIO RND) and 'Intel Secure Key RNG'(RDRAND) is specific to the system running on a virtual machine.

$ sysctl kern.random
kern.random.fortuna.concurrent_read: 1
kern.random.fortuna.minpoolsize: 64
kern.random.rdrand.rdrand_independent_seed: 0
kern.random.use_chacha20_cipher: 1
kern.random.block_seeded_status: 0
kern.random.random_sources: 'VirtIO Entropy Adapter','Intel Secure Key RNG'
kern.random.harvest.mask_symbolic: VMGENID,PURE_VIRTIO,PURE_RDRAND,[UMA],[FS_ATIME],SWI,INTERRUPT,NET_NG,[NET_ETHER],NET_TUN,MOUSE,KEYBOARD,ATTACH,CACHED
kern.random.harvest.mask_bin: 100001001000000111011111
kern.random.harvest.mask: 8683999
kern.random.initial_seeding.disable_bypass_warnings: 0
kern.random.initial_seeding.arc4random_bypassed_before_seeding: 0
kern.random.initial_seeding.read_random_bypassed_before_seeding: 0
kern.random.initial_seeding.bypass_before_seeding: 1

And then, the reason for the high CPU utilization was, after all, VirtIO Entropy Adapter.

It is a para-virtualization device for a random number device as it is named to use its physical device on a host from a VM. It is expected to use lower CPU if we use common sense, but it's not so in this case. I don't know why, though. The VirtIO RNG's random source is assigned /dev/urandom on the host, so it may not be blocking. I haven't changed these settings at all..hummm…why?

I decided to use the VM without the VirtIO RNG because getting high-loaded by para-virtualization is putting the cart before the horse. Intel Secure Key RNG still works as the random source in FreeBSD, so it'll be no problem.

The power consumption returned to former level, then my wallet stays away from losing money.

ConnectX-3 VF finally works in Windows guest on PVE!

The SR-IOV is mine at last!

I finally succeed in working a virtual function of ConnectX-3 SR-IOV on a Windows 10 Pro. guest on Proxmox VE 6.3!

Getting the device manager to recognise the VF was a piece of cake, but I struggled with an “Error code 43” problem even though I tried to install its driver over and over. As it turned out, the cause was that PVE's built-in PF driver was outdated indeed. I will write it down at a later date if time permits.

Let's just see a performance of SR-IOV!

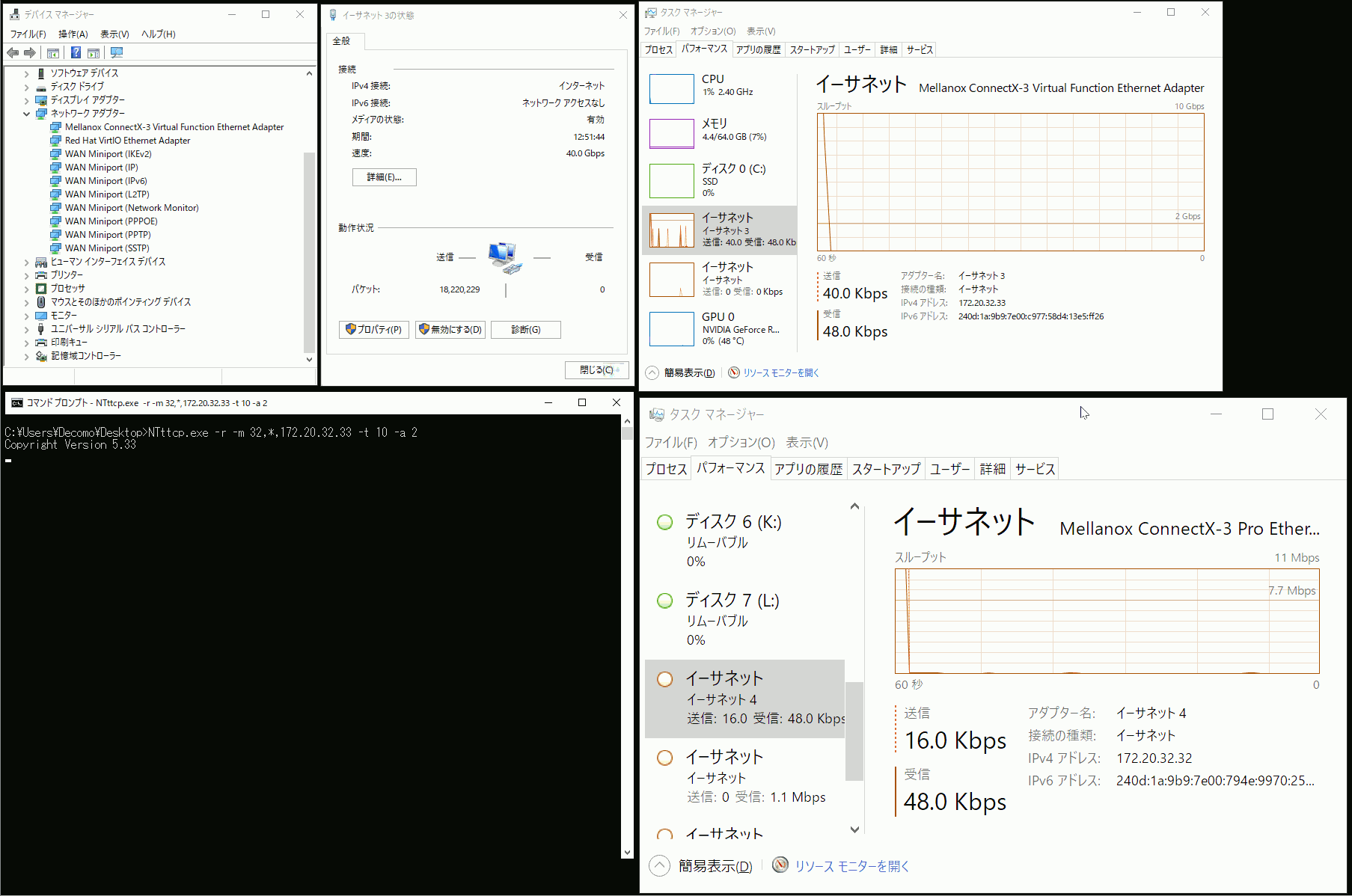

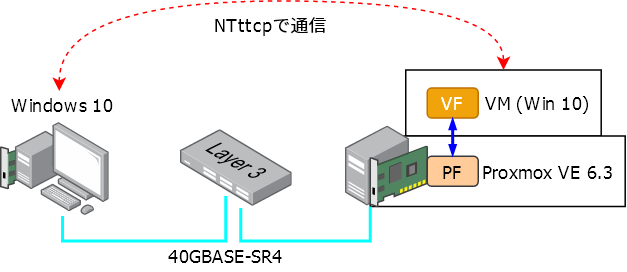

As shown in above picture, two Windows 10 PCs were connected by ConnectX-3 via a Layer-3 switch, one of which was physical machine (left-side in the picture) and the another was virtual machine (right-side). Then I measured line speed using NTttcp which was a Microsoft's official tool. Sender was left-side machine, and receiver was right-side. The result is below:

There are four task manager in the picture, but the active task manager in the bottom right corner runs on the physical machine, the others do on the virtual machine. It turns out that the connection speeds up to about 26Gbps. When I tested it using virtio-net instead of the PF on the VM, it sped up to about 12Gbps in comparable terms. The SR-IOV works out lower CPU load even more than faster speed. Only the SR-IOV could do that!

I also found out it peaked up to about 32Gbps on a side note.

Scrubing degraded ZFS pools can't be imported by another systems?

It's a long story, I imported a RAIDZ pool which consisted of 4 HDDs and was created by FreeBSD to a ZoL environment as a degraded pool consisted of 3 HDDs.

Although scrub was automatically running, I cancelled it and exported it, then tried to import the entire 4 HDDs on the BSD system, but it couldn't.

# zpool import zdata
cannot import 'zdata': no such pool available

A such error happened. I sweated it because the pool could get corrupted by come-and-go the pool between the BSD and Linux with degraded.

On the ZoL environment, I found the degraded pool was succeeded to import. After the pool got back to 4 HDDs and finished to resilver, it could be imported on the FreeBSD system.

It appears a degraded pool can't be imported by other systems once it is imported by the first system until its reliability will be recovered, I guess. I don't know this behaviour is normal or a special case occurred by come-and-go the pool between FreeBSD (Legacy ZFS) and the ZoL.

If it is right behaviour, the pool virtually will get unavailable when the PC will break up, so I guess it may not be right behaviour. I log this phenomenon as it actually happened.

ConnectX-3 VF not working on Windows comes from old in-box MLNX_OFED driver of PVE

It seems the matter ConnectX-3's SR-IOV doesn't work on Windows 10 VM on Proxmox VE 6.3 is a pretty old inbox mlx4 driver of PVE, to be exact, the driver is boxed in Linux.

When the driver is used, Windows VM recognises virtual functions and they appear to be working, but actually they are not working because of “Code 43” status. PVE reports logs like below:

mlx4_core 0000:01:00.0: vhcr command:0x43 slave:1 failed with error:0, status -22
mlx4_core 0000:01:00.0: Received reset from slave:1

I saw the “Mellanox OFED for Linux Archived Bug Fixes” document, then I found that the Internal Ref 1178129 was kin to my situation.

Description: Fixed an issue that prevented Windows virtual machines running over MLNX_OFED Linux hypervisors from operating ConnectX-3 IB ports.

When such failures occurred, the following message (or similar) appeared in the Linux HV message log when users attempted to start up a Windows VM running a ConnectX-3 VF:

“mlx4_core 0000:81:00.0: vhcr command 0x1a slave:1 in_param 0x793000 in_mod=0x210 op_mod=0x0 failed with error:0, status -22”

There was a difference that the description was mentioned to “IB ports” while my environment was “Eth ports”, but the situation was similar indeed. This issue have been fixed on MLNX_OFED v4.2-1.2.0.0. The latest driver is v4.9-2.2.4.0 LTS as of January 10, 2021, so it should be solved years ago.

I didn't know why I ran into the problem, but I found the fact which the version of Linux inbox driver corresponded to v4.0. What the hell… Someone sent the bug report to Kernel.org' Bugzilla, though, nobody cares.

I had no choice but to build the latest driver myself, then the ConnectX-3 VF easily worked. Come on, I just fell into the pitfall!

However, it is not perfect solution because any traffics don't flow though the VF seems to work fine sometimes. I guess this problem is cased by wrong something at the time of a device initialization. If it happens, restart VM several times to open the connection up. Once the device work fine, it will seem to keep working as long as the VM is active.

Another thing that makes me wonder is that Send/Recv bytes counters on Windows' network status dialog are weired. The recev bytes is always zero though the network is actually communicating. Some applications seem to recgonise that the network is down in case of using the VF. For example, iTunes fails to connect to Gracenote server because of “no network.” I'm not sure that there is the relation between these or not. By virtio-net, it works perfectly without these problems, so it is not like that my network is bad.

The information about SR-IOV little exists on the Internet, so I'm in the fog.


(Updated: 2021-12-07)

I saw Known Issues of WinOF v5.50.5400 Release notes, then found Internal Ref 1297888 which was exactly the “packet counter” issue. That's why the issue is a Windows driver bug.

Its workaround is N/A, so I have to wait to be fixed, but I wonder if it will be done? ConnectX-3 series already has been LTS phase anyway. I wish I could get a ConnectX-4 at a low price.
