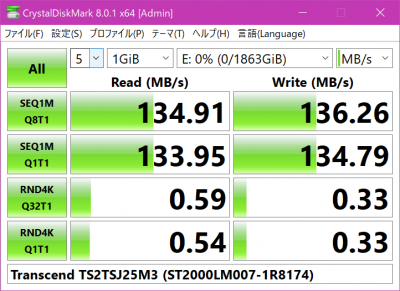

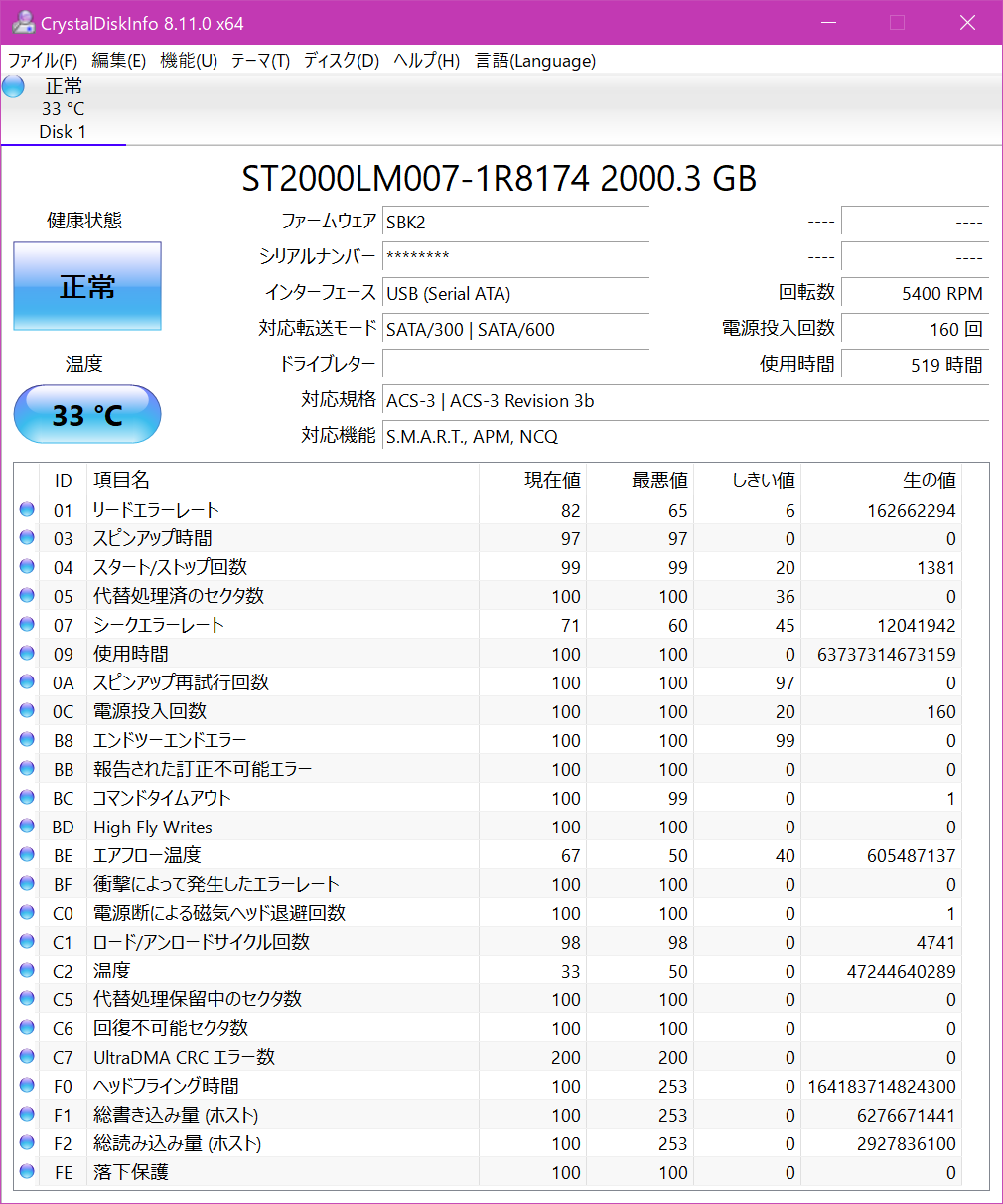

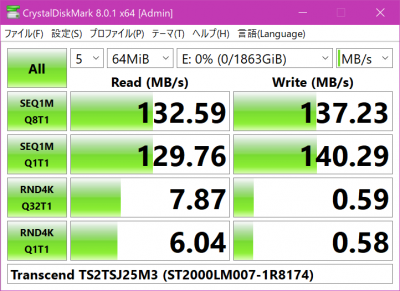

ソースの表示以前のリビジョンバックリンク全て展開する／折り畳む文書の先頭へ Share via Share via... Twitter LinkedIn Facebook Pinterest Telegram WhatsApp Yammer Reddit Teams最近の変更Send via e-Mail印刷パーマリンク × TS2TSJ25M3の中身とベンチマーク PS3のバックアップ用に急遽1TB以上のUSBなHDDが必要になった。手持ちのSATA-USB変換器とHDDの組み合わせは、ことごとくPS3で認識されなかったのだよ…。 今更外付けHDDに金掛けたくないなぁと思いつつ販売サイトを物色してると、じゃんぱらでTranscend StoreJet 25M3 TS2TSJ25M3の中古品が2980円だったので即購入。傷あり、USBケーブルなし、本体のみということで状態は期待できなかったが、USB 3.0で2TBのポータブルHDDがその値段なら、多少の瑕疵を差し引いても割安だろう。まぁ実物はそこまで悪くなかったんですけど。 能書きはこれくらいにして、CrystallDiskInfoの結果はこちら。 製品は2018年製造の個体で、中身はご覧のとおりSeagate ST2000LM007-1R8174だった。使用時間も少ないし大当たりだ。 CrystalDiskMarkの結果は以下の通り。64MBと1GBで計測してみた。 64MBの方はキャッシュが効いてるのか、ランダム4Kがそれなりの結果となっている。それ以外は特筆すべき点はないかな。 Transcend TS32GMTS400 32GBのベンチマーク ルータ用にと思って買った小型PCに、トランセンドのM.2 Type 2242なSSD MTS400シリーズの32GB、T32GMTS400が入っていたのでベンチなんぞを取ってみる。公式サイトによると、32GB版のスペックは読み込み200MB/s、書き込み40MB/s、90TBWの2DWPD(3年)となっている。 ディスクの状態は↓こんな感じ。新品で買ったPCの割に電源投入回数と書き込み量が多いような…。 ベンチは↓な感じ。 ------------------------------------------------------------------------------ CrystalDiskMark 7.0.0 x64 (C) 2007-2019 hiyohiyo Crystal Dew World: https://crystalmark.info/ ------------------------------------------------------------------------------ * MB/s = 1,000,000 bytes/s [SATA/600 = 600,000,000 bytes/s] * KB = 1000 bytes, KiB = 1024 bytes [Read] Sequential 1MiB (Q= 8, T= 1): 279.169 MB/s [ 266.2 IOPS] < 29939.73 us> Sequential 1MiB (Q= 1, T= 1): 268.454 MB/s [ 256.0 IOPS] < 3902.29 us> Random 4KiB (Q= 32, T=16): 107.224 MB/s [ 26177.7 IOPS] < 19488.81 us> Random 4KiB (Q= 1, T= 1): 28.066 MB/s [ 6852.1 IOPS] < 145.41 us> [Write] Sequential 1MiB (Q= 8, T= 1): 53.481 MB/s [ 51.0 IOPS] <153808.46 us> Sequential 1MiB (Q= 1, T= 1): 53.065 MB/s [ 50.6 IOPS] < 19666.44 us> Random 4KiB (Q= 32, T=16): 53.459 MB/s [ 13051.5 IOPS] < 39015.26 us> Random 4KiB (Q= 1, T= 1): 52.687 MB/s [ 12863.0 IOPS] < 77.35 us> Profile: Default Test: 1 GiB (x5) [Interval: 5 sec] <DefaultAffinity=DISABLED> Date: 2020/04/12 13:20:08 OS: Windows 10 Professional [10.0 Build 16299] (x64) Comment: Transcend TS32GMTS400 カタログスペック以上の速度は出ているが、最初期のコンシューマ向けSSDと比べても遅めですな…。128GB版でも書き込み160MB/s程度っぽいので、このシリーズはこんなものなのだろう。 参考サイト SATA III M.2 SSD | M.2 SSD 400S - トランセンド トランセンド SATA接続M.2 SSD MTS400 128GB TS128GMTS400 ベンチマーク – メカニカルマンブログ Transcend TS256GUSD300S-Aのベンチマーク Nintendo Switch用にトランセンドのmicroSDXC TS256GUSD300S-Aを買った。税込み4580円。シリアル番号で保証期間が表示されたので正規品だと思われる。 Switchで使う前にCheck Flashで喝入れ、SD Formatterで上書きフォーマットし、CrystalDiskMarkでベンチしてみた。USB 3.0接続のカードリーダーでの結果でござる。 ------------------------------------------------------------------------------ CrystalDiskMark 7.0.0 x64 (C) 2007-2019 hiyohiyo Crystal Dew World: https://crystalmark.info/ ------------------------------------------------------------------------------ * MB/s = 1,000,000 bytes/s [SATA/600 = 600,000,000 bytes/s] * KB = 1000 bytes, KiB = 1024 bytes [Read] Sequential 1MiB (Q= 8, T= 1): 93.954 MB/s [ 89.6 IOPS] < 88429.49 us> Sequential 1MiB (Q= 1, T= 1): 93.332 MB/s [ 89.0 IOPS] < 11211.36 us> Random 4KiB (Q= 32, T=16): 6.323 MB/s [ 1543.7 IOPS] <258114.41 us> Random 4KiB (Q= 1, T= 1): 6.099 MB/s [ 1489.0 IOPS] < 670.86 us> [Write] Sequential 1MiB (Q= 8, T= 1): 53.682 MB/s [ 51.2 IOPS] <150429.74 us> Sequential 1MiB (Q= 1, T= 1): 53.275 MB/s [ 50.8 IOPS] < 19516.58 us> Random 4KiB (Q= 32, T=16): 3.240 MB/s [ 791.0 IOPS] <185034.42 us> Random 4KiB (Q= 1, T= 1): 3.246 MB/s [ 792.5 IOPS] < 1260.52 us> Profile: Default Test: 1 GiB (x5) [Interval: 5 sec] <DefaultAffinity=DISABLED> Date: 2019/12/08 18:56:23 OS: Windows 10 Professional [10.0 Build 18362] (x64) Comment: Transcend TS256GUSD300S-A (microSDXC/256GB) 値段なりの順当な結果かなと。ついでにSD Card Formatterでの初期化結果は↓こんな感じだった。 ABLENET VPS V1のHDDプラン/SSDプランのベンチマーク ABLENETのVPS V1プランでストレージをHDDからSSDに契約変更した。HDDプランとSSDプランでは収容先が異なるようで、変更時はデータ全削除＆IPアドレスが変わる点は注意が必要。それぞれのプランでUnix Benchを取ってみた。 なお、HDDプランは今から1年ほど前（2017年12月頃）に契約したサーバである。 dmesg ■HDD Copyright (c) 1992-2018 The FreeBSD Project. Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994 The Regents of the University of California. All rights reserved. FreeBSD is a registered trademark of The FreeBSD Foundation. FreeBSD 11.2-RELEASE-p4 #0: Thu Sep 27 08:16:24 UTC 2018 root@amd64-builder.daemonology.net:/usr/obj/usr/src/sys/GENERIC amd64 FreeBSD clang version 6.0.0 (tags/RELEASE_600/final 326565) (based on LLVM 6.0.0) VT(vga): text 80x25 CPU: Intel(R) Xeon(R) CPU E5-2640 v2 @ 2.00GHz (2100.01-MHz K8-class CPU) Origin="GenuineIntel" Id=0x623 Family=0x6 Model=0x2 Stepping=3 Features=0x1783fbfd<FPU,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,MMX,FXSR,SSE,SSE2,HTT> Features2=0x80802001<SSE3,CX16,POPCNT,HV> AMD Features=0x20100800<SYSCALL,NX,LM> AMD Features2=0x1<LAHF> Hypervisor: Origin = "KVMKVMKVM" real memory = 1610612736 (1536 MB) avail memory = 1513332736 (1443 MB) Event timer "LAPIC" quality 100 ACPI APIC Table: <BOCHS BXPCAPIC> FreeBSD/SMP: Multiprocessor System Detected: 2 CPUs FreeBSD/SMP: 1 package(s) x 2 core(s) ioapic0: Changing APIC ID to 2 ioapic0 <Version 1.1> irqs 0-23 on motherboard SMP: AP CPU #1 Launched! random: entropy device external interface kbd1 at kbdmux0 netmap: loaded module module_register_init: MOD_LOAD (vesa, 0xffffffff80ff4580, 0) error 19 nexus0 vtvga0: <VT VGA driver> on motherboard cryptosoft0: <software crypto> on motherboard acpi0: <BOCHS BXPCRSDT> on motherboard acpi0: Power Button (fixed) cpu0: <ACPI CPU> on acpi0 cpu1: <ACPI CPU> on acpi0 atrtc0: <AT realtime clock> port 0x70-0x71,0x72-0x77 irq 8 on acpi0 atrtc0: registered as a time-of-day clock, resolution 1.000000s Event timer "RTC" frequency 32768 Hz quality 0 hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0 Timecounter "HPET" frequency 100000000 Hz quality 950 Timecounter "ACPI-fast" frequency 3579545 Hz quality 900 acpi_timer0: <24-bit timer at 3.579545MHz> port 0xb008-0xb00b on acpi0 pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0 pci0: <ACPI PCI bus> on pcib0 pci_link4: Unable to route IRQs: AE_NOT_FOUND isab0: <PCI-ISA bridge> at device 1.0 on pci0 isa0: <ISA bus> on isab0 atapci0: <Intel PIIX3 WDMA2 controller> port 0x1f0-0x1f7,0x3f6,0x170-0x177,0x376,0xc180-0xc18f at device 1.1 on pci0 ata0: <ATA channel> at channel 0 on atapci0 ata1: <ATA channel> at channel 1 on atapci0 uhci0: <Intel 82371SB (PIIX3) USB controller> port 0xc140-0xc15f irq 11 at device 1.2 on pci0 usbus0: controller did not stop usbus0 on uhci0 usbus0: 12Mbps Full Speed USB v1.0 pci0: <bridge> at device 1.3 (no driver attached) vgapci0: <VGA-compatible display> mem 0xfc000000-0xfdffffff,0xfebf2000-0xfebf2fff at device 2.0 on pci0 vgapci0: Boot video device em0: <Intel(R) PRO/1000 Legacy Network Connection 1.1.0> port 0xc100-0xc13f mem 0xfeba0000-0xfebbffff irq 11 at device 3.0 on pci0 em0: Ethernet address: 52:54:00:51:90:03 em0: netmap queues/slots: TX 1/256, RX 1/256 sym0: <895a> port 0xc000-0xc0ff mem 0xfebf3000-0xfebf33ff,0xfebf0000-0xfebf1fff irq 11 at device 4.0 on pci0 sym0: No NVRAM, ID 7, Fast-40, LVD, parity checking virtio_pci0: <VirtIO PCI Balloon adapter> port 0xc160-0xc17f irq 10 at device 5.0 on pci0 vtballoon0: <VirtIO Balloon Adapter> on virtio_pci0 atkbdc0: <Keyboard controller (i8042)> port 0x60,0x64 irq 1 on acpi0 atkbd0: <AT Keyboard> irq 1 on atkbdc0 kbd0 at atkbd0 atkbd0: [GIANT-LOCKED] psm0: <PS/2 Mouse> irq 12 on atkbdc0 psm0: [GIANT-LOCKED] psm0: model IntelliMouse Explorer, device ID 4 fdc0: <floppy drive controller> port 0x3f2-0x3f5,0x3f7 irq 6 drq 2 on acpi0 fdc0: does not respond device_attach: fdc0 attach returned 6 orm0: <ISA Option ROM> at iomem 0xec800-0xeffff on isa0 vga0: <Generic ISA VGA> at port 0x3c0-0x3df iomem 0xa0000-0xbffff on isa0 attimer0: <AT timer> at port 0x40 on isa0 Timecounter "i8254" frequency 1193182 Hz quality 0 Event timer "i8254" frequency 1193182 Hz quality 100 fdc0: No FDOUT register! ppc0: cannot reserve I/O port range ZFS filesystem version: 5 ZFS storage pool version: features support (5000) Timecounters tick every 10.000 msec ugen0.1: <Intel UHCI root HUB> at usbus0 uhub0: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus0 uhub0: 2 ports with 2 removable, self powered sym0: unknown interrupt(s) ignored, ISTAT=0x1 DSTAT=0x80 SIST=0x0 ugen0.2: <QEMU 1.1.0 QEMU USB Tablet> at usbus0 cd0 at ata1 bus 0 scbus1 target 0 lun 0 cd0: <QEMU QEMU DVD-ROM 1.1.> Removable CD-ROM SCSI device cd0: Serial Number QM00003 cd0: 16.700MB/s transfers (WDMA2, ATAPI 12bytes, PIO 65534bytes) cd0: Attempt to query device size failed: NOT READY, Medium not present da0 at sym0 bus 0 scbus2 target 0 lun 0 da0: <QEMU QEMU HARDDISK 1.1.> Fixed Direct Access SPC-3 SCSI device da0: 3.300MB/s transfers da0: Command Queueing enabled da0: 95367MB (195312500 512 byte sectors) Trying to mount root from zfs:zroot/sys/ROOT/default []... warning: total configured swap (4194304 pages) exceeds maximum recommended amount (1494312 pages). warning: increase kern.maxswzone or reduce amount of swap. random: unblocking device. em0: link state changed to UP uhid0 on uhub0 uhid0: <QEMU 1.1.0 QEMU USB Tablet, class 0/0, rev 1.00/0.00, addr 2> on usbus0 ■SSD Copyright (c) 1992-2018 The FreeBSD Project. Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994 The Regents of the University of California. All rights reserved. FreeBSD is a registered trademark of The FreeBSD Foundation. FreeBSD 11.2-RELEASE-p5 #0: Tue Nov 27 09:33:52 UTC 2018 root@amd64-builder.daemonology.net:/usr/obj/usr/src/sys/GENERIC amd64 FreeBSD clang version 6.0.0 (tags/RELEASE_600/final 326565) (based on LLVM 6.0.0) VT(vga): text 80x25 CPU: Intel(R) Xeon(R) CPU E5-2667 v3 @ 3.20GHz (3400.06-MHz K8-class CPU) Origin="GenuineIntel" Id=0x6fb Family=0x6 Model=0xf Stepping=11 Features=0x1f83fbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,MMX,FXSR,SSE,SSE2,SS,HTT> Features2=0x80002201<SSE3,SSSE3,CX16,HV> AMD Features=0x20100800<SYSCALL,NX,LM> AMD Features2=0x1<LAHF> Hypervisor: Origin = "KVMKVMKVM" real memory = 1610612736 (1536 MB) avail memory = 1513537536 (1443 MB) Event timer "LAPIC" quality 100 ACPI APIC Table: <BOCHS BXPCAPIC> FreeBSD/SMP: Multiprocessor System Detected: 2 CPUs FreeBSD/SMP: 1 package(s) x 2 core(s) ioapic0 <Version 1.1> irqs 0-23 on motherboard SMP: AP CPU #1 Launched! random: entropy device external interface kbd1 at kbdmux0 netmap: loaded module module_register_init: MOD_LOAD (vesa, 0xffffffff80ff4580, 0) error 19 nexus0 vtvga0: <VT VGA driver> on motherboard cryptosoft0: <software crypto> on motherboard acpi0: <BOCHS BXPCRSDT> on motherboard acpi0: Power Button (fixed) cpu0: <ACPI CPU> on acpi0 cpu1: <ACPI CPU> on acpi0 atrtc0: <AT realtime clock> port 0x70-0x71,0x72-0x77 irq 8 on acpi0 atrtc0: registered as a time-of-day clock, resolution 1.000000s Event timer "RTC" frequency 32768 Hz quality 0 hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0 Timecounter "HPET" frequency 100000000 Hz quality 950 Timecounter "ACPI-fast" frequency 3579545 Hz quality 900 acpi_timer0: <24-bit timer at 3.579545MHz> port 0xb008-0xb00b on acpi0 pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0 pci0: <ACPI PCI bus> on pcib0 isab0: <PCI-ISA bridge> at device 1.0 on pci0 isa0: <ISA bus> on isab0 atapci0: <Intel PIIX3 WDMA2 controller> port 0x1f0-0x1f7,0x3f6,0x170-0x177,0x376,0xc180-0xc18f at device 1.1 on pci0 ata0: <ATA channel> at channel 0 on atapci0 ata1: <ATA channel> at channel 1 on atapci0 uhci0: <Intel 82371SB (PIIX3) USB controller> port 0xc140-0xc15f irq 11 at device 1.2 on pci0 usbus0: controller did not stop usbus0 on uhci0 usbus0: 12Mbps Full Speed USB v1.0 pci0: <bridge> at device 1.3 (no driver attached) vgapci0: <VGA-compatible display> mem 0xfc000000-0xfdffffff,0xfebf2000-0xfebf2fff at device 2.0 on pci0 vgapci0: Boot video device em0: <Intel(R) PRO/1000 Legacy Network Connection 1.1.0> port 0xc100-0xc13f mem 0xfeba0000-0xfebbffff irq 11 at device 3.0 on pci0 em0: Ethernet address: 52:54:00:51:90:03 em0: link state changed to UP em0: netmap queues/slots: TX 1/256, RX 1/256 sym0: <895a> port 0xc000-0xc0ff mem 0xfebf3000-0xfebf33ff,0xfebf0000-0xfebf1fff irq 11 at device 4.0 on pci0 sym0: No NVRAM, ID 7, Fast-40, LVD, parity checking virtio_pci0: <VirtIO PCI Balloon adapter> port 0xc160-0xc17f irq 10 at device 5.0 on pci0 vtballoon0: <VirtIO Balloon Adapter> on virtio_pci0 atkbdc0: <Keyboard controller (i8042)> port 0x60,0x64 irq 1 on acpi0 atkbd0: <AT Keyboard> irq 1 on atkbdc0 kbd0 at atkbd0 atkbd0: [GIANT-LOCKED] psm0: <PS/2 Mouse> irq 12 on atkbdc0 psm0: [GIANT-LOCKED] psm0: model IntelliMouse Explorer, device ID 4 fdc0: <floppy drive controller> port 0x3f2-0x3f5,0x3f7 irq 6 drq 2 on acpi0 fdc0: does not respond device_attach: fdc0 attach returned 6 orm0: <ISA Option ROM> at iomem 0xee800-0xeffff on isa0 vga0: <Generic ISA VGA> at port 0x3c0-0x3df iomem 0xa0000-0xbffff on isa0 attimer0: <AT timer> at port 0x40 on isa0 Timecounter "i8254" frequency 1193182 Hz quality 0 Event timer "i8254" frequency 1193182 Hz quality 100 fdc0: No FDOUT register! ppc0: cannot reserve I/O port range ZFS WARNING: Recommended minimum kmem_size is 512MB; expect unstable behavior. Consider tuning vm.kmem_size and vm.kmem_size_max in /boot/loader.conf. ZFS filesystem version: 5 ZFS storage pool version: features support (5000) Timecounters tick every 10.000 msec ugen0.1: <Intel UHCI root HUB> at usbus0 uhub0: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus0 uhub0: 2 ports with 2 removable, self powered sym0: unknown interrupt(s) ignored, ISTAT=0x1 DSTAT=0x80 SIST=0x0 ugen0.2: <QEMU QEMU USB Tablet> at usbus0 cd0 at ata1 bus 0 scbus1 target 0 lun 0 cd0: <QEMU QEMU DVD-ROM 2.2.> Removable CD-ROM SCSI device cd0: Serial Number QM00003 cd0: 16.700MB/s transfers (WDMA2, ATAPI 12bytes, PIO 65534bytes) cd0: Attempt to query device size failed: NOT READY, Medium not present da0 at sym0 bus 0 scbus2 target 0 lun 0 da0: <QEMU QEMU HARDDISK 2.2.> Fixed Direct Access SPC-3 SCSI device da0: 3.300MB/s transfers da0: Command Queueing enabled da0: 38146MB (78125000 512 byte sectors) Trying to mount root from zfs:zroot/sys/ROOT/default []... warning: total configured swap (2097152 pages) exceeds maximum recommended amount (1494312 pages). warning: increase kern.maxswzone or reduce amount of swap. random: unblocking device. uhid0 on uhub0 uhid0: <QEMU QEMU USB Tablet, class 0/0, rev 1.00/0.00, addr 2> on usbus0 Unix Bench ■HDD # # # # # # # ##### ###### # # #### # # # # ## # # # # # # # ## # # # # # # # # # # # ## ##### ##### # # # # ###### # # # # # # ## # # # # # # # # # # # # ## # # # # # # # ## # # # # #### # # # # # ##### ###### # # #### # # Version 5.1.3 Based on the Byte Magazine Unix Benchmark Multi-CPU version Version 5 revisions by Ian Smith, Sunnyvale, CA, USA January 13, 2011 johantheghost at yahoo period com ------------------------------------------------------------------------------ Use directories for: * File I/O tests (named fs***) = /usr/home/hogehoge/byte-unixbench-master/UnixBench/tmp * Results = /usr/home/hogehoge/byte-unixbench-master/UnixBench/results ------------------------------------------------------------------------------ 1 x Dhrystone 2 using register variables 1 2 3 4 5 6 7 8 9 10 1 x Double-Precision Whetstone 1 2 3 4 5 6 7 8 9 10 1 x Execl Throughput 1 2 3 1 x File Copy 1024 bufsize 2000 maxblocks 1 2 3 1 x File Copy 256 bufsize 500 maxblocks 1 2 3 1 x File Copy 4096 bufsize 8000 maxblocks 1 2 3 1 x Pipe Throughput 1 2 3 4 5 6 7 8 9 10 1 x Pipe-based Context Switching 1 2 3 4 5 6 7 8 9 10 1 x Process Creation 1 2 3 1 x System Call Overhead 1 2 3 4 5 6 7 8 9 10 1 x Shell Scripts (1 concurrent) 1 2 3 1 x Shell Scripts (8 concurrent) 1 2 3 2 x Dhrystone 2 using register variables 1 2 3 4 5 6 7 8 9 10 2 x Double-Precision Whetstone 1 2 3 4 5 6 7 8 9 10 2 x Execl Throughput 1 2 3 2 x File Copy 1024 bufsize 2000 maxblocks 1 2 3 2 x File Copy 256 bufsize 500 maxblocks 1 2 3 2 x File Copy 4096 bufsize 8000 maxblocks 1 2 3 2 x Pipe Throughput 1 2 3 4 5 6 7 8 9 10 2 x Pipe-based Context Switching 1 2 3 4 5 6 7 8 9 10 2 x Process Creation 1 2 3 2 x System Call Overhead 1 2 3 4 5 6 7 8 9 10 2 x Shell Scripts (1 concurrent) 1 2 3 2 x Shell Scripts (8 concurrent) 1 2 3 ======================================================================== BYTE UNIX Benchmarks (Version 5.1.3) System: asahi.ra.pub.oh2.jp: FreeBSD OS: FreeBSD -- 11.2-RELEASE-p4 -- FreeBSD 11.2-RELEASE-p4 #0: Thu Sep 27 08:16:24 UTC 2018 root@amd64-builder.daemonology.net:/usr/obj/usr/src/sys/GENERIC Machine: amd64 (GENERIC) Language: en_US.utf8 (charmap=, collate=) CPU: no details available 12:33PM up 10 mins, 1 user, load averages: 0.18, 0.20, 0.12; runlevel ------------------------------------------------------------------------ Benchmark Run: Tue Dec 11 2018 12:33:50 - 13:02:24 2 CPUs in system; running 1 parallel copy of tests Dhrystone 2 using register variables 14584509.1 lps (10.0 s, 7 samples) Double-Precision Whetstone 3009.7 MWIPS (10.0 s, 7 samples) Execl Throughput 568.1 lps (29.8 s, 2 samples) File Copy 1024 bufsize 2000 maxblocks 13916.5 KBps (30.0 s, 2 samples) File Copy 256 bufsize 500 maxblocks 3267.5 KBps (30.1 s, 2 samples) File Copy 4096 bufsize 8000 maxblocks 52622.8 KBps (30.0 s, 2 samples) Pipe Throughput 24037.1 lps (10.1 s, 7 samples) Pipe-based Context Switching 4895.0 lps (10.0 s, 7 samples) Process Creation 1348.3 lps (30.0 s, 2 samples) Shell Scripts (1 concurrent) 1634.7 lpm (60.0 s, 2 samples) Shell Scripts (8 concurrent) 352.6 lpm (60.0 s, 2 samples) System Call Overhead 134038.7 lps (10.0 s, 7 samples) System Benchmarks Index Values BASELINE RESULT INDEX Dhrystone 2 using register variables 116700.0 14584509.1 1249.7 Double-Precision Whetstone 55.0 3009.7 547.2 Execl Throughput 43.0 568.1 132.1 File Copy 1024 bufsize 2000 maxblocks 3960.0 13916.5 35.1 File Copy 256 bufsize 500 maxblocks 1655.0 3267.5 19.7 File Copy 4096 bufsize 8000 maxblocks 5800.0 52622.8 90.7 Pipe Throughput 12440.0 24037.1 19.3 Pipe-based Context Switching 4000.0 4895.0 12.2 Process Creation 126.0 1348.3 107.0 Shell Scripts (1 concurrent) 42.4 1634.7 385.5 Shell Scripts (8 concurrent) 6.0 352.6 587.7 System Call Overhead 15000.0 134038.7 89.4 ======== System Benchmarks Index Score 109.3 ------------------------------------------------------------------------ Benchmark Run: Tue Dec 11 2018 13:02:24 - 13:30:54 2 CPUs in system; running 2 parallel copies of tests Dhrystone 2 using register variables 26073288.2 lps (10.0 s, 7 samples) Double-Precision Whetstone 5758.3 MWIPS (9.8 s, 7 samples) Execl Throughput 1071.6 lps (29.5 s, 2 samples) File Copy 1024 bufsize 2000 maxblocks 8221.9 KBps (30.0 s, 2 samples) File Copy 256 bufsize 500 maxblocks 1952.0 KBps (30.0 s, 2 samples) File Copy 4096 bufsize 8000 maxblocks 29844.9 KBps (30.0 s, 2 samples) Pipe Throughput 32199.7 lps (10.0 s, 7 samples) Pipe-based Context Switching 14874.7 lps (10.0 s, 7 samples) Process Creation 3887.9 lps (30.0 s, 2 samples) Shell Scripts (1 concurrent) 2619.8 lpm (60.0 s, 2 samples) Shell Scripts (8 concurrent) 370.4 lpm (60.1 s, 2 samples) System Call Overhead 235107.9 lps (10.0 s, 7 samples) System Benchmarks Index Values BASELINE RESULT INDEX Dhrystone 2 using register variables 116700.0 26073288.2 2234.2 Double-Precision Whetstone 55.0 5758.3 1047.0 Execl Throughput 43.0 1071.6 249.2 File Copy 1024 bufsize 2000 maxblocks 3960.0 8221.9 20.8 File Copy 256 bufsize 500 maxblocks 1655.0 1952.0 11.8 File Copy 4096 bufsize 8000 maxblocks 5800.0 29844.9 51.5 Pipe Throughput 12440.0 32199.7 25.9 Pipe-based Context Switching 4000.0 14874.7 37.2 Process Creation 126.0 3887.9 308.6 Shell Scripts (1 concurrent) 42.4 2619.8 617.9 Shell Scripts (8 concurrent) 6.0 370.4 617.3 System Call Overhead 15000.0 235107.9 156.7 ======== System Benchmarks Index Score 150.1 ■SSD # # # # # # # ##### ###### # # #### # # # # ## # # # # # # # ## # # # # # # # # # # # ## ##### ##### # # # # ###### # # # # # # ## # # # # # # # # # # # # ## # # # # # # # ## # # # # #### # # # # # ##### ###### # # #### # # Version 5.1.3 Based on the Byte Magazine Unix Benchmark Multi-CPU version Version 5 revisions by Ian Smith, Sunnyvale, CA, USA January 13, 2011 johantheghost at yahoo period com ------------------------------------------------------------------------------ Use directories for: * File I/O tests (named fs***) = /usr/home/hogehoge/byte-unixbench-master/UnixBench/tmp * Results = /usr/home/hogehoge/byte-unixbench-master/UnixBench/results ------------------------------------------------------------------------------ 1 x Dhrystone 2 using register variables 1 2 3 4 5 6 7 8 9 10 1 x Double-Precision Whetstone 1 2 3 4 5 6 7 8 9 10 1 x Execl Throughput 1 2 3 1 x File Copy 1024 bufsize 2000 maxblocks 1 2 3 1 x File Copy 256 bufsize 500 maxblocks 1 2 3 1 x File Copy 4096 bufsize 8000 maxblocks 1 2 3 1 x Pipe Throughput 1 2 3 4 5 6 7 8 9 10 1 x Pipe-based Context Switching 1 2 3 4 5 6 7 8 9 10 1 x Process Creation 1 2 3 1 x System Call Overhead 1 2 3 4 5 6 7 8 9 10 1 x Shell Scripts (1 concurrent) 1 2 3 1 x Shell Scripts (8 concurrent) 1 2 3 2 x Dhrystone 2 using register variables 1 2 3 4 5 6 7 8 9 10 2 x Double-Precision Whetstone 1 2 3 4 5 6 7 8 9 10 2 x Execl Throughput 1 2 3 2 x File Copy 1024 bufsize 2000 maxblocks 1 2 3 2 x File Copy 256 bufsize 500 maxblocks 1 2 3 2 x File Copy 4096 bufsize 8000 maxblocks 1 2 3 2 x Pipe Throughput 1 2 3 4 5 6 7 8 9 10 2 x Pipe-based Context Switching 1 2 3 4 5 6 7 8 9 10 2 x Process Creation 1 2 3 2 x System Call Overhead 1 2 3 4 5 6 7 8 9 10 2 x Shell Scripts (1 concurrent) 1 2 3 2 x Shell Scripts (8 concurrent) 1 2 3 ======================================================================== BYTE UNIX Benchmarks (Version 5.1.3) System: asahi.ra.pub.oh2.jp: FreeBSD OS: FreeBSD -- 11.2-RELEASE-p5 -- FreeBSD 11.2-RELEASE-p5 #0: Tue Nov 27 09:33:52 UTC 2018 root@amd64-builder.daemonology.net:/usr/obj/usr/src/sys/GENERIC Machine: amd64 (GENERIC) Language: en_US.utf8 (charmap=, collate=) CPU: no details available 3:29PM up 2:44, 1 user, load averages: 0.26, 0.19, 0.17; runlevel ------------------------------------------------------------------------ Benchmark Run: Wed Dec 12 2018 15:29:18 - 15:59:45 2 CPUs in system; running 1 parallel copy of tests Dhrystone 2 using register variables 38289076.9 lps (10.0 s, 7 samples) Double-Precision Whetstone 8007.5 MWIPS (8.9 s, 7 samples) Execl Throughput 1926.3 lps (29.9 s, 2 samples) File Copy 1024 bufsize 2000 maxblocks 67638.4 KBps (30.1 s, 2 samples) File Copy 256 bufsize 500 maxblocks 17279.3 KBps (30.0 s, 2 samples) File Copy 4096 bufsize 8000 maxblocks 247053.5 KBps (30.1 s, 2 samples) Pipe Throughput 95834.8 lps (10.1 s, 7 samples) Pipe-based Context Switching 36319.9 lps (10.1 s, 7 samples) Process Creation 6116.5 lps (30.0 s, 2 samples) Shell Scripts (1 concurrent) 5853.5 lpm (60.0 s, 2 samples) Shell Scripts (8 concurrent) 1268.3 lpm (60.0 s, 2 samples) System Call Overhead 457579.9 lps (10.1 s, 7 samples) System Benchmarks Index Values BASELINE RESULT INDEX Dhrystone 2 using register variables 116700.0 38289076.9 3281.0 Double-Precision Whetstone 55.0 8007.5 1455.9 Execl Throughput 43.0 1926.3 448.0 File Copy 1024 bufsize 2000 maxblocks 3960.0 67638.4 170.8 File Copy 256 bufsize 500 maxblocks 1655.0 17279.3 104.4 File Copy 4096 bufsize 8000 maxblocks 5800.0 247053.5 426.0 Pipe Throughput 12440.0 95834.8 77.0 Pipe-based Context Switching 4000.0 36319.9 90.8 Process Creation 126.0 6116.5 485.4 Shell Scripts (1 concurrent) 42.4 5853.5 1380.5 Shell Scripts (8 concurrent) 6.0 1268.3 2113.8 System Call Overhead 15000.0 457579.9 305.1 ======== System Benchmarks Index Score 437.5 ------------------------------------------------------------------------ Benchmark Run: Wed Dec 12 2018 15:59:45 - 16:27:47 2 CPUs in system; running 2 parallel copies of tests Dhrystone 2 using register variables 78112155.4 lps (10.0 s, 7 samples) Double-Precision Whetstone 16124.2 MWIPS (8.9 s, 7 samples) Execl Throughput 3610.4 lps (29.9 s, 2 samples) File Copy 1024 bufsize 2000 maxblocks 71466.9 KBps (30.1 s, 2 samples) File Copy 256 bufsize 500 maxblocks 17735.9 KBps (30.0 s, 2 samples) File Copy 4096 bufsize 8000 maxblocks 270519.3 KBps (30.0 s, 2 samples) Pipe Throughput 181715.0 lps (10.0 s, 7 samples) Pipe-based Context Switching 71715.0 lps (10.0 s, 7 samples) Process Creation 14122.1 lps (30.0 s, 2 samples) Shell Scripts (1 concurrent) 9875.0 lpm (60.1 s, 2 samples) Shell Scripts (8 concurrent) 1341.4 lpm (60.0 s, 2 samples) System Call Overhead 876871.6 lps (10.0 s, 7 samples) System Benchmarks Index Values BASELINE RESULT INDEX Dhrystone 2 using register variables 116700.0 78112155.4 6693.4 Double-Precision Whetstone 55.0 16124.2 2931.7 Execl Throughput 43.0 3610.4 839.6 File Copy 1024 bufsize 2000 maxblocks 3960.0 71466.9 180.5 File Copy 256 bufsize 500 maxblocks 1655.0 17735.9 107.2 File Copy 4096 bufsize 8000 maxblocks 5800.0 270519.3 466.4 Pipe Throughput 12440.0 181715.0 146.1 Pipe-based Context Switching 4000.0 71715.0 179.3 Process Creation 126.0 14122.1 1120.8 Shell Scripts (1 concurrent) 42.4 9875.0 2329.0 Shell Scripts (8 concurrent) 6.0 1341.4 2235.7 System Call Overhead 15000.0 876871.6 584.6 ======== System Benchmarks Index Score 697.6 今回割り当てられたサーバは旧サーバより1世代新しく、また、まだあまり人がいないのか実に4倍以上の性能アップとなった。portsのビルド速度なんかは目に見えて速い（これはSSDの影響が大きいだろうけど）。半年後あたりに再度ベンチしてみたい。 VMware Fusion 6 Professionalにしてみた VMware Fusion 6では最大16CPUに対応したとの事なので、VMware Fusion 4からアップグレードした。 これでうちの12コアMac Proで動画のエンコが捗る。 折角なのでx264 HD Benchmark 5.0.1でベンチマークしてみた。 マシンMac Pro (Early 2009) CPUXeon L5640 (2.26GHz/6コア) × 2個 メモリDDR3-1333 ECC 4GB × 8 = 32GB (1066MHz動作) OSOS X v10.8.5 仮想マシンはVMware Fusion 4ではCPU8個、VMware Fusion 6では8個と16個、メモリは全て8GBを割り当て。OSはBootCampパーティションのWindows 7 SP1で、環境は一緒。 同一条件で比べると、6の方が僅かに性能が良いようだ。16コア（と言っても物理12コア+論理4コアだけど）でもう少し伸びるかなーと思ったけど、それほどでもなかった。まぁ、OS X側にもリソース持ってかれてるからこんなものか。 start.txt 最終更新: 2022-07-27 15:26by Decomo
